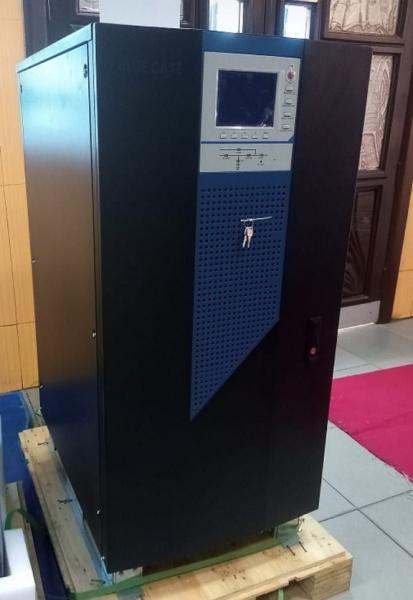

Blue Gate 20.2KVA/384V Online UPS Three phase
The Blue Gate three phase online UPS series, featured with cabinet built-in batteries, making ready to use. DSP Control, Programmable battery voltage, intelligent charge mode with powerful battery charger, is an ideal budget-concerned solution to your server, bank, industrial equipment, internet data center, telecom, IT equipment and other mission-critical application.
BLUE GATE 3p UPS Technical Specifications
Three-phase input three-phase output
| Â | Â |
| Rated capacity(VA) | 20KVA |
| Active power(W) | 18KW |
| INPUT | |
| Voltage Range | 380/400/415Vac (-25%～+20%) three phase |
| Frequency Range | 50/60Hz±5Hz auto identification |
| Power Factor | ＞0.8(no filter)    ＞0.9(with filter) |
| OUTPUT | |
| Voltage Range |  380/400/415Vac ±1% |
| Rated output current | 30A |
| Frequency | Auto learning |
| Frequency stability(battery mode) | 50/60Hz±0.05% |
| Wave form | Sine wave |
| Power Factor | 0.9(lag) |
| Total harmonic distortion | ＜3% (linear load) / ＜5%(nonlinear load) |
| Overload capacity | 105%≤60min <110%  / 110%≤10min<125% |
| Crest Factor | 3：1 (max) |
| Efficiency | 89% |
| Transfer time (Line mode, Battery mode) | 0ms |
| Bypass | |
| Rated voltage | 380/400/415Vac (three phase four wire) |
| Voltage protection range | -40%～+20% |
| Rated frequency | 50/60Hz |
| Frequency protection range | ±20% |
| Transfer time | 0ms/1ms |
| Overload capacity(In) | 15In, 10ms 5In, 5s |
| Battery | |
| Voltage (VDC) | Â 384VDC |
| panel | |
| LED | input, inverter, bypass, battery and output |
| LCD | input and output voltage, frequency, power factor, battery voltage, battery current and status, load percentage, UPS status, history record, setting |
| Communication | |
| interface | Dry contact, RS232, RS485, SNMP card slot |
| Working environment | |
| Running Temperature |  0～40℃ |
| Relative humidity | 0～95% ( without condensing) |
| Storage temperature | -25℃～55℃ |
| Noise at 1 | ＜63dB |
Blue Gate 40.2KVA/384V Online UPS Three phase
The Blue Gate three phase online UPS series, featured with cabinet built-in batteries, making ready to use. DSP Control, Programmable battery voltage, intelligent charge mode with powerful battery charger, is an ideal budget-concerned solution to your server, bank, industrial equipment, internet data center, telecom, IT equipment and other mission-critical application.
BLUE GATE 3p UPS Technical Specifications
Three-phase input three-phase output
| Rated capacity(VA) | 40KAVA |
| Active power(W) | 36KW |
| INPUT | |
| Voltage Range | 380/400/415Vac (-25%～+20%) three phase |
| Frequency Range | 50/60Hz±5Hz auto identification |
| Power Factor | ＞0.8(no filter)    ＞0.9(with filter) |
| OUTPUT | |
| Voltage Range |  380/400/415Vac ±1% |
| Rated output current | 60A |
| Frequency | Auto learning |
| Frequency stability(battery mode) | 50/60Hz±0.05% |
| Wave form | Sine wave |
| Power Factor | 0.9(lag) |
| Total harmonic distortion | ＜3% (linear load) / ＜5%(nonlinear load) |
| Overload capacity | 105%≤60min <110%  / 110%≤10min<125% |
| Crest Factor | 3：1 (max) |
| Efficiency | 90% |
| Transfer time (Line mode, Battery mode) | 0ms |
| Bypass | |
| Rated voltage | 380/400/415Vac (three phase four wire) |
| Voltage protection range | -40%～+20% |
| Rated frequency | 50/60Hz |
| Frequency protection range | ±20% |
| Transfer time | 0ms/1ms |
| Overload capacity(In) | 15In, 10ms 5In, 5s |
| Battery | |
| Voltage (VDC) | Â 384VDC |
| panel | |
| LED | input, inverter, bypass, battery and output |
| LCD | input and output voltage, frequency, power factor, battery voltage, battery current and status, load percentage, UPS status, history record, setting |
| Communication | |
| interface | Dry contact, RS232, RS485, SNMP card slot |
| Working environment | |
| Running Temperature |  0～40℃ |
| Relative humidity | 0～95% ( without condensing) |
| Storage temperature | -25℃～55℃ |
| Noise at 1 | ＜63dB |

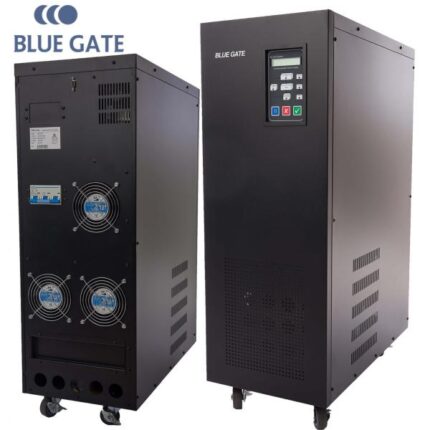

BlueGate 10.2KVA Online UPS, LF (External. 16 Pcs Of 24ah Battery)
Online UPS offers zero switchover time from mains supply to UPS supply mode, meaning that continuous power supply is available to the equipment. Online UPS, unlike line interactive UPS, is always supplying from its battery bank, thus ensuring there's no switchover break which can affect sensitive equipment. The Online UPS is therefore safer for expensive, sensitive equipment.
Blue Gate 10KVA/7000W Online UPS HF Series - BGK 10.0HFi, offers seamless power backup, with zero transfer performance. The Blue Gate Online UPS range has zero switching time, making them ideal for sensitive equipment like servers, networking devices, and similar equipment that will not tolerate any power switchover time.
The Blue Gate 10KVA Online UPS boasts an advanced UPS design, with a central processing system. It is equipped with advanced voltage compensation technology, advanced frequency technology and advanced PFC technology. You get undistorted standard sine wave from a wide range of input variables, as a result.
The Blue Gate 10KVA Online UPS offers 7000W power output capacity. The voltage input range is 115±5VAC - 295±5VAC, when the load is less than 70% and 160±5VAC - 295±55VAC, when it's above 70%. Similarly, the frequency range is 46 - 54Hz±0.5Hz or 56 - 64Hz±0.5Hz auto sensing. It is a single phase UPS, with pure sine wave waveform.
Features of Blue Gate 10KVA/7000W Online UPS
Check these key features of the Blue Gate HF Series UPS:
Good for IT equipment: network, servers etc
High frequency and double conversion online technology
Fully digitized microprocessor control
Wide input voltage range
LCD display
UPS start up without battery; Cold start
Advanced battery management
Automatic battery charging in UPS off mode
Lightning and surge protection
Short circuit and overload protection
Fan speed auto control when loads varies
Network/fax/modem surge protection
Optional extension battery pack
Battery voltage display
Load capacity display
EMI/RFI noise filter
Smart RS232 communication with monitoring software

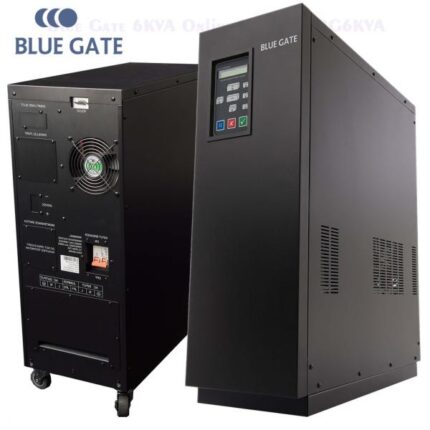

BlueGate 6.2KVA UPS Online Lfi Series
This series of UPS is based on true on-line double conversion design, which avoids kinds of interference from Mains. The output of the UPS is stable, low-THD pure sine wave, with adjustable input/output characteristics which enhance its flexibility as well as performance.
Application
Critical servers, storage application and other networking equipment.
Features
True on-line double conversion design providing all power protection.
Sine wave pulse width modulation.
IGBT inverter design.
Wide Input voltage windows.
Pure sine wave output with less than 3% THD.
Expandable backup time.
Generator compatible.
Cold start.
Load/Battery power meter display.
Overload, on-line, battery status LED/LCD.
Advanced Battery Management.
Automatic charging in UPS off mode.
Zero transfer time on AC mode to/ from battery mode, AC mode to/ from bypass mode.
Smart RS-232 communication port.
Optional SNMP card and Dry card.
