1.2KVA (1200VA) Vectronic line-interactive UPS

Original price was: ₦250,000.00.Current price is: ₦180,000.00.
The 1.2KVA (1200VA) Vectronic Line-Interactive UPS is the perfect power protection solution for home electronics, small office equipment, POS systems,
Add to wishlist
Add to cart
Quick view
-15%
Compare

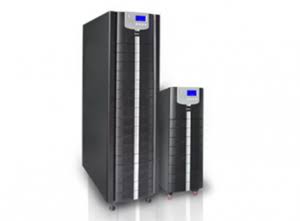

100kVA Vectronic Online UPS

Original price was: ₦20,000,000.00.Current price is: ₦17,000,000.00.
Input
Voltage 400 Vac
Tolerance 320 – 450V
Frequency             50Hz ± 6%
Output
Voltage      400Vac ± 1%
Power Factor 0.8
Transfer Time     0 ms
Frequency                     50Hz ± 6% (On Mains)
50Hz ± 0.5% (On Battery)
Waveform                      Pure Sine Wave
THDi Linear Load ≤ 3%;     Non-linear Load ≤ 5%
Crest Factor  3 : 1 (Max)
Bypass Facility Maintenance Bypass and Static Bypass
DC Bus / DC Functions:
DC Bus Voltage   384V
Charging Current  5 – 20A, Adjustable
Cold-Start Function Yes
Battery Charging in OFF Mode    Yes
Battery Type Sealed, Maintenance-free VRLA
LCD User Interface:
Metering / Indications for Voltage
  Load %
Frequency
  General Status
Alarm
Communication:
Interfaces  RS232
Overload
105~125% 10  mins (Output swithes to bypass after 60s)
 >130% 1 min
Environment:
Temperature       0 ~ 40oC
Humidity       20 ~ 90% Non-condensing
Altitude < 1000m
IP Class 20
Physical:
Dimensions  (mm)         10-20kVA      :       560 x 700 x 1040 (W x D x H)
  30-40kVA      :       660 x 800 x 1380 (W x D x H)
60-80kVA      :       1540 x 880 x 1570 (W x D x H)
  100-200kVA  :       2000 x 980 x 1800 (W x D x H)
Weight (Kg) 10kVA           :       260kg
  15kVA           :       350kg
  20kVA           :       400kg
  30kVA           :       480kg
  40kVA           :       650kg
  60kVA           :       650kg
  80kVA           :       1200kg
  100kVA         :       1330kg
120-200kVA  :       On Request
Add to wishlist
Add to cart
Quick view
-39%
Compare

10kVA Vectronic Online UPS (C Series with batteries)

Original price was: ₦3,800,000.00.Current price is: ₦2,300,000.00.

Product specifications:

Input
Voltage 230 Vac
Tolerance  Normal Over-voltage:       10%
Withstand Over-voltage:   15% (20% max limit)
  Normal Under-voltage:      – 20%
Withstand Low-voltage:      – 30% (-37% lowest limit)
Power Factor 0.98
Output
Voltage      230Vac ± 1%
Power Factor 0.8
  0.9
Transfer Time     0 ms
Frequency 46 – 54Hz (On Mains)
  50Hz (On Battery)
Waveform                      Pure Sine Wave
THDi Linear Load ≤ 3%;     Non-linear Load ≤ 6%
Crest Factor  3 : 1
Bypass Facility FS Model:       Static Bypass
  FS-V Model:   Both Maintenance Bypass and Static Bypass
DC Bus / DC Functions:
1kVA 36V
2kVA 72/96V
3kVA 96V
6/10kVA 192V / 240V
Cold-Start Function Yes
Charging Time   6hr to recover to 90% capacity
Battery Charging in OFF Mode    Yes
Battery Type Sealed, Maintenance-free VRLA
LCD User Interface:
Metering / Indications for Voltage
  Load %
Frequency
  General Status
Alarm
Communication:
Interfaces  RS232, USB*, SNMP*                          (* Option)
Overload
100~110% Output swithes to bypass after 60s
125~130% Output swithes to bypass after 30s
 >130% Output swithes to bypass after 100ms
Environment:
Temperature       0 ~ 40oC
Humidity       20 ~ 90% Non-condensing
Noise Level              < 50dB from 1m
IP Class 20
Physical:
Dimensions  (mm)         1kVA      :       145 x 405 x 220 (W x D x H)
  2-3kVA   :       192 x 460 x 340 (W x D x H)
6-10kVA :       248 x 500 x 460 (W x D x H)
Weight (Kg) 1kVA      :       14kg
  2kVA      :       34kg
  3kVA      :       34.5kg
  6kVA      :       57kg / 192V:          90kg / 240V
  10kVA    :       60kg / 192V;          93kg / 240V
Add to wishlist
Add to cart
Quick view
-36%
Compare

10kVA Vectronic Online UPS FS Series

Original price was: ₦1,950,000.00.Current price is: ₦1,250,000.00.
Input
Voltage 400 Vac
Tolerance 320 – 450V
Frequency             50Hz ± 6%
Output
Voltage      400Vac ± 1%
Power Factor 0.8
Transfer Time     0 ms
Frequency                     50Hz ± 6% (On Mains)
50Hz ± 0.5% (On Battery)
Waveform                      Pure Sine Wave
THDi Linear Load ≤ 3%;     Non-linear Load ≤ 5%
Crest Factor  3 : 1 (Max)
Bypass Facility Maintenance Bypass and Static Bypass
DC Bus / DC Functions:
DC Bus Voltage   384V
Charging Current  5 – 20A, Adjustable
Cold-Start Function Yes
Battery Charging in OFF Mode    Yes
Battery Type Sealed, Maintenance-free VRLA
LCD User Interface:
Metering / Indications for Voltage
  Load %
Frequency
  General Status
Alarm
Communication:
Interfaces  RS232
Overload
105~125% 10  mins (Output swithes to bypass after 60s)
 >130% 1 min
Environment:
Temperature       0 ~ 40oC
Humidity       20 ~ 90% Non-condensing
Altitude < 1000m
IP Class 20
Physical:
Dimensions  (mm)         10-20kVA      :       560 x 700 x 1040 (W x D x H)
  30-40kVA      :       660 x 800 x 1380 (W x D x H)
60-80kVA      :       1540 x 880 x 1570 (W x D x H)
  100-200kVA  :       2000 x 980 x 1800 (W x D x H)
Weight (Kg) 10kVA           :       260kg
  15kVA           :       350kg
  20kVA           :       400kg
  30kVA           :       480kg
  40kVA           :       650kg
  60kVA           :       650kg
  80kVA           :       1200kg
  100kVA         :       1330kg
120-200kVA  :       On Request
Add to wishlist
Add to cart
Quick view
Compare

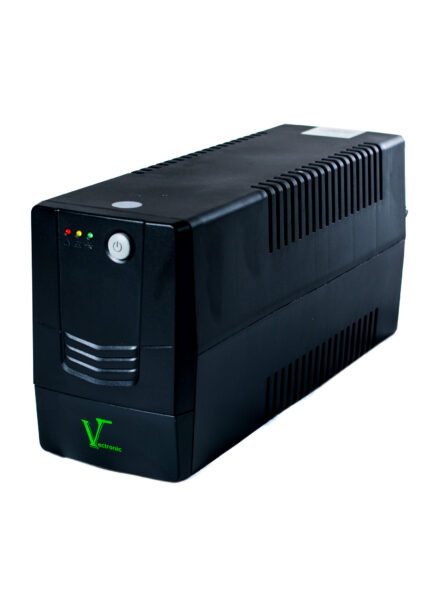

1200VA Vectronic line-interractive UPS

1200VA Vectronic Line-Interactive UPS – Reliable Power Protection The 1200VA Vectronic Line-Interactive UPS is designed to deliver dependable power backup
