10kVA Vectronic Online UPS (C Series with batteries)
10kVA Vectronic Online UPS (C Series with batteries) Original price was: ₦3,800,000.00.Current price is: ₦2,300,000.00.
Back to products
1200VA Vectronic line-interractive UPS
1200VA Vectronic line-interractive UPS

10kVA Vectronic Online UPS FS Series

Original price was: ₦1,950,000.00.Current price is: ₦1,250,000.00.

Input
Voltage 400 Vac
Tolerance 320 – 450V
Frequency             50Hz ± 6%
Output
Voltage      400Vac ± 1%
Power Factor 0.8
Transfer Time     0 ms
Frequency                     50Hz ± 6% (On Mains)
50Hz ± 0.5% (On Battery)
Waveform                      Pure Sine Wave
THDi Linear Load ≤ 3%;     Non-linear Load ≤ 5%
Crest Factor  3 : 1 (Max)
Bypass Facility Maintenance Bypass and Static Bypass
DC Bus / DC Functions:
DC Bus Voltage   384V
Charging Current  5 – 20A, Adjustable
Cold-Start Function Yes
Battery Charging in OFF Mode    Yes
Battery Type Sealed, Maintenance-free VRLA
LCD User Interface:
Metering / Indications for Voltage
  Load %
Frequency
  General Status
Alarm
Communication:
Interfaces  RS232
Overload
105~125% 10  mins (Output swithes to bypass after 60s)
 >130% 1 min
Environment:
Temperature       0 ~ 40oC
Humidity       20 ~ 90% Non-condensing
Altitude < 1000m
IP Class 20
Physical:
Dimensions  (mm)         10-20kVA      :       560 x 700 x 1040 (W x D x H)
  30-40kVA      :       660 x 800 x 1380 (W x D x H)
60-80kVA      :       1540 x 880 x 1570 (W x D x H)
  100-200kVA  :       2000 x 980 x 1800 (W x D x H)
Weight (Kg) 10kVA           :       260kg
  15kVA           :       350kg
  20kVA           :       400kg
  30kVA           :       480kg
  40kVA           :       650kg
  60kVA           :       650kg
  80kVA           :       1200kg
  100kVA         :       1330kg
120-200kVA  :       On Request
Compare
Add to wishlist
Category:
Description

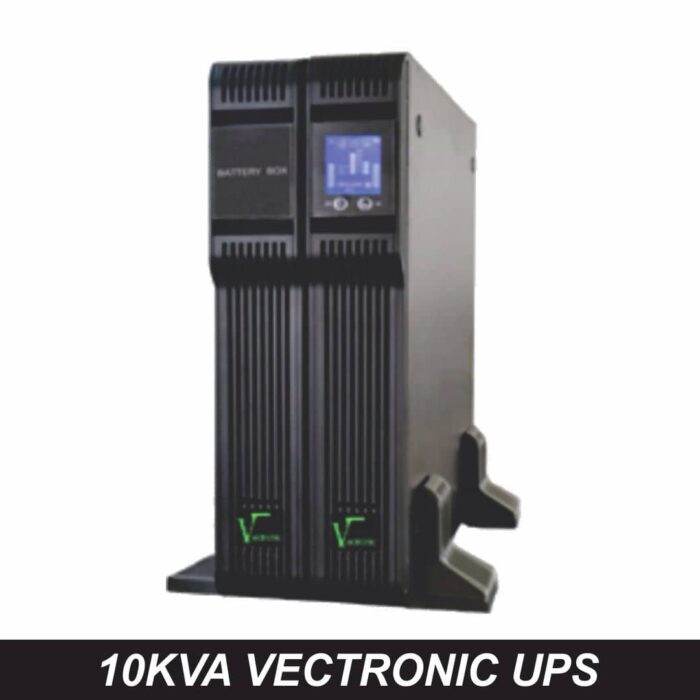

10kVA Vectronic Online UPS FS Series – Uninterrupted Power You Can Trust

Power stability is crucial for businesses, offices, and critical equipment. The 10kVA Vectronic Online UPS FS Series, available at Arise Energies, is designed to deliver reliable, uninterrupted, and high-performance power backup when you need it most. Built with advanced double-conversion technology, this online UPS ensures that your sensitive systems are protected from power fluctuations, surges, and outages.

Key Features of 10kVA Vectronic Online UPS FS Series

  • ✅ High-Capacity Power Backup: Provides continuous 10kVA power for smooth operations.

  • ✅ Online Double Conversion: Guarantees stable output voltage and frequency, shielding sensitive equipment from power issues.

  • ✅ Wide Input Voltage Range: Handles unstable power supply without compromising performance.

  • ✅ LCD Display: User-friendly interface for real-time monitoring and system control.

  • ✅ Reliable Battery Support: Ensures extended backup time and long-lasting durability.

  • ✅ Compact & Sturdy Design: Suitable for offices, IT environments, medical facilities, and industrial applications.

Why Choose the 10kVA Vectronic Online UPS?

In today’s fast-paced environment, downtime can cost businesses heavily. The Vectronic FS Series UPS provides complete peace of mind by offering:

  • Protection against blackouts and surges

  • Stable power for servers, computers, and medical equipment

  • Reduced risk of data loss or system damage

With the 10kVA Vectronic Online UPS, your critical operations stay online, no matter the power situation.

Applications

The 10kVA Vectronic Online UPS FS Series is ideal for:

  • 🏢 Corporate Offices & IT Infrastructure

  • 🏭 Industrial & Manufacturing Equipment

  • 🏥 Hospitals & Medical Equipment

  • 🏫 Educational Institutions

  • 💻 Data Centers & Telecoms

Why Buy from Arise Energies?

At Arise Energies, we provide genuine power solutions backed by expert consultation, installation support, and after-sales service. When you purchase the 10kVA Vectronic Online UPS FS Series from us, you’re assured of quality, reliability, and professional customer care.

📞 Order Now from Arise Energies
Upgrade your power backup with the 10kVA Vectronic Online UPS FS Series. Contact us today for pricing, installation, and nationwide delivery across Nigeria.
