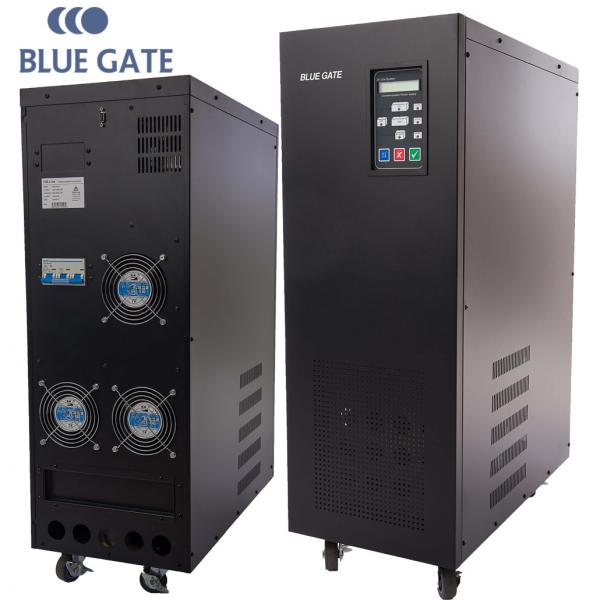

BlueGate 10.2KVA Online UPS, LF (External. 16 Pcs Of 24ah Battery)

Name: BlueGate 10.2KVA Online UPS, LF (External. 16 Pcs Of 24ah Battery) - Arise Energies
Price: 5500000.00 NGN
Availability: InStock

Original price was: ₦6,300,000.00.Current price is: ₦5,500,000.00.

Online UPS offers zero switchover time from mains supply to UPS supply mode, meaning that continuous power supply is available to the equipment. Online UPS, unlike line interactive UPS, is always supplying from its battery bank, thus ensuring there’s no switchover break which can affect sensitive equipment. The Online UPS is therefore safer for expensive, sensitive equipment.

Blue Gate 10KVA/7000W Online UPS HF Series – BGK 10.0HFi, offers seamless power backup, with zero transfer performance. The Blue Gate Online UPS range has zero switching time, making them ideal for sensitive equipment like servers, networking devices, and similar equipment that will not tolerate any power switchover time.
The Blue Gate 10KVA Online UPS boasts an advanced UPS design, with a central processing system. It is equipped with advanced voltage compensation technology, advanced frequency technology and advanced PFC technology. You get undistorted standard sine wave from a wide range of input variables, as a result.

The Blue Gate 10KVA Online UPS offers 7000W power output capacity. The voltage input range is 115±5VAC – 295±5VAC, when the load is less than 70% and 160±5VAC – 295±55VAC, when it’s above 70%. Similarly, the frequency range is 46 – 54Hz±0.5Hz or 56 – 64Hz±0.5Hz auto sensing. It is a single phase UPS, with pure sine wave waveform.
Features of Blue Gate 10KVA/7000W Online UPS
Check these key features of the Blue Gate HF Series UPS:
Good for IT equipment: network, servers etc
High frequency and double conversion online technology
Fully digitized microprocessor control
Wide input voltage range
LCD display
UPS start up without battery; Cold start
Advanced battery management
Automatic battery charging in UPS off mode
Lightning and surge protection
Short circuit and overload protection
Fan speed auto control when loads varies
Network/fax/modem surge protection
Optional extension battery pack
Battery voltage display
Load capacity display
EMI/RFI noise filter
Smart RS232 communication with monitoring software

Compare

Add to wishlist

Category: UPS

Description

BlueGate 10.2KVA Online UPS, LF (External – 16 Pcs of 24Ah Battery)

⚡ Reliable Power Backup for High-Performance Systems

The BlueGate 10.2KVA Online UPS (Low Frequency) is a powerful, high-capacity uninterruptible power supply system designed to keep your operations running smoothly during power interruptions. Built for businesses, offices, data centers, and industrial use, this UPS delivers clean, stable, and reliable power to protect your sensitive equipment from surges, voltage fluctuations, and outages.

At Arise Energies, we provide the BlueGate 10.2KVA Online UPS as a premium backup solution for customers who demand performance, durability, and efficiency. With 16 external 24Ah batteries, you can enjoy extended backup time and uninterrupted productivity.

🔋 Key Features & Specifications

Capacity: 10.2KVA / 10200VA
Technology: True Double-Conversion Online UPS (Low Frequency)
Battery Configuration: 16 external 24Ah batteries for extended runtime
Input Voltage: Wide input range to handle unstable grid power
Output: Pure sine wave for sensitive equipment protection
Transfer Time: Zero transfer time between mains and inverter mode
Display: Intelligent LCD panel for monitoring input, output, and battery status
Protection: Overload, short circuit, surge, and battery protection
Cooling System: Smart fan for temperature control and long lifespan

⚙️ Why Choose the BlueGate 10.2KVA Online UPS from Arise Energies

✅ High Performance: Provides stable power for servers, medical devices, and industrial systems.
✅ Scalable Backup: Supports extended battery configuration for longer runtime.
✅ Durable & Efficient: Engineered for heavy-duty use with high energy efficiency.
✅ Trusted Brand: BlueGate is a leading name in power protection technology.
✅ Professional Support: Arise Energies offers installation, maintenance, and nationwide delivery.

🌍 Ideal Applications

Data centers and IT infrastructure
Corporate offices and financial institutions
Medical and laboratory equipment
Industrial automation systems
Telecom and network devices

💡 Why Arise Energies?

At Arise Energies, we don’t just sell power products — we deliver energy reliability. Our team provides expert advice, quality assurance, and dependable after-sales support to ensure your business never goes offline.

🛒 Order Now

Secure your operations today with the BlueGate 10.2KVA Online UPS (LF, 16x24Ah External Batteries) — your reliable defense against downtime.
👉 Shop now at Arise Energies for affordable prices, expert support, and fast nationwide delivery.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “BlueGate 10.2KVA Online UPS, LF (External. 16 Pcs Of 24ah Battery)”

Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Rated capacity(VA)	40KAVA
Active power(W)	36KW
*INPUT*
Voltage Range	380/400/415Vac (-25%～+20%) three phase
Frequency Range	50/60Hz±5Hz auto identification
Power Factor	＞0.8(no filter) ＞0.9(with filter)
*OUTPUT*
Voltage Range	380/400/415Vac ±1%
Rated output current	60A
Frequency	Auto learning
Frequency stability(battery mode)	50/60Hz±0.05%
Wave form	Sine wave
Power Factor	0.9(lag)
Total harmonic distortion	＜3% (linear load) / ＜5%(nonlinear load)
Overload capacity	105%≤60min <110% / 110%≤10min<125%
Crest Factor	3：1 (max)
Efficiency	90%
Transfer time (Line mode, Battery mode)	0ms
*Bypass*
Rated voltage	380/400/415Vac (three phase four wire)
Voltage protection range	-40%～+20%
Rated frequency	50/60Hz
Frequency protection range	±20%
Transfer time	0ms/1ms
Overload capacity(In)	15In, 10ms 5In, 5s
*Battery*
Voltage (VDC)	384VDC
*panel*
LED	input, inverter, bypass, battery and output
LCD	input and output voltage, frequency, power factor, battery voltage, battery current and status, load percentage, UPS status, history record, setting
*Communication*
interface	Dry contact, RS232, RS485, SNMP card slot
*Working environment*
Running Temperature	0～40℃
Relative humidity	0～95% ( without condensing)
Storage temperature	-25℃～55℃
Noise at 1	＜63dB

Input
Voltage	230 Vac
Tolerance	Normal Over-voltage: 10%
	Withstand Over-voltage: 15% (20% max limit)
	Normal Under-voltage: – 20%
	Withstand Low-voltage: – 30% (-37% lowest limit)
Power Factor	0.98

Output
Voltage	230Vac ± 1%
Power Factor	0.8
	0.9
Transfer Time	0 ms
Frequency	46 – 54Hz (On Mains)
	50Hz (On Battery)
Waveform	Pure Sine Wave
THDi	Linear Load ≤ 3%; Non-linear Load ≤ 6%
Crest Factor	3 : 1
Bypass Facility	FS Model: Static Bypass
	FS-V Model: Both Maintenance Bypass and Static Bypass

DC Bus / DC Functions:
1kVA	36V
2kVA	72/96V
3kVA	96V
6/10kVA	192V / 240V
Cold-Start Function	Yes
Charging Time	6hr to recover to 90% capacity
Battery Charging in OFF Mode	Yes
Battery Type	Sealed, Maintenance-free VRLA

LCD User Interface:
Metering / Indications for	Voltage
	Load %
	Frequency
	General Status
	Alarm

Communication:
Interfaces	RS232, USB, SNMP (* Option)

Overload
100~110%	Output swithes to bypass after 60s
125~130%	Output swithes to bypass after 30s
>130%	Output swithes to bypass after 100ms

Environment:
Temperature	0 ~ 40^oC
Humidity	20 ~ 90% Non-condensing
Noise Level	< 50dB from 1m
IP Class	20

Physical:
Dimensions (mm)	1kVA : 145 x 405 x 220 (W x D x H)
	2-3kVA : 192 x 460 x 340 (W x D x H)
	6-10kVA : 248 x 500 x 460 (W x D x H)
Weight (Kg)	1kVA : 14kg
	2kVA : 34kg
	3kVA : 34.5kg
	6kVA : 57kg / 192V: 90kg / 240V
	10kVA : 60kg / 192V; 93kg / 240V

Input
Voltage	400 Vac
Tolerance	320 – 450V
Frequency	50Hz ± 6%

Output
Voltage	400Vac ± 1%
Power Factor	0.8
Transfer Time	0 ms
Frequency	50Hz ± 6% (On Mains)
	50Hz ± 0.5% (On Battery)
Waveform	Pure Sine Wave
THDi	Linear Load ≤ 3%; Non-linear Load ≤ 5%
Crest Factor	3 : 1 (Max)
Bypass Facility	Maintenance Bypass and Static Bypass

DC Bus / DC Functions:
DC Bus Voltage	384V
Charging Current	5 – 20A, Adjustable
Cold-Start Function	Yes
Battery Charging in OFF Mode	Yes
Battery Type	Sealed, Maintenance-free VRLA

LCD User Interface:
Metering / Indications for	Voltage
	Load %
	Frequency
	General Status
	Alarm

Communication:
Interfaces	RS232

Overload
105~125%	10 mins (Output swithes to bypass after 60s)
>130%	1 min

Environment:
Temperature	0 ~ 40^oC
Humidity	20 ~ 90% Non-condensing
Altitude	< 1000m
IP Class	20

Physical:
Dimensions (mm)	10-20kVA : 560 x 700 x 1040 (W x D x H)
	30-40kVA : 660 x 800 x 1380 (W x D x H)
	60-80kVA : 1540 x 880 x 1570 (W x D x H)
	100-200kVA : 2000 x 980 x 1800 (W x D x H)
Weight (Kg)	10kVA : 260kg
	15kVA : 350kg
	20kVA : 400kg
	30kVA : 480kg
	40kVA : 650kg
	60kVA : 650kg
	80kVA : 1200kg
	100kVA : 1330kg
	120-200kVA : On Request


Rated capacity(VA)	20KVA
Active power(W)	18KW
*INPUT*
Voltage Range	380/400/415Vac (-25%～+20%) three phase
Frequency Range	50/60Hz±5Hz auto identification
Power Factor	＞0.8(no filter) ＞0.9(with filter)
*OUTPUT*
Voltage Range	380/400/415Vac ±1%
Rated output current	30A
Frequency	Auto learning
Frequency stability(battery mode)	50/60Hz±0.05%
Wave form	Sine wave
Power Factor	0.9(lag)
Total harmonic distortion	＜3% (linear load) / ＜5%(nonlinear load)
Overload capacity	105%≤60min <110% / 110%≤10min<125%
Crest Factor	3：1 (max)
Efficiency	89%
Transfer time (Line mode, Battery mode)	0ms
*Bypass*
Rated voltage	380/400/415Vac (three phase four wire)
Voltage protection range	-40%～+20%
Rated frequency	50/60Hz
Frequency protection range	±20%
Transfer time	0ms/1ms
Overload capacity(In)	15In, 10ms 5In, 5s
*Battery*
Voltage (VDC)	384VDC
*panel*
LED	input, inverter, bypass, battery and output
LCD	input and output voltage, frequency, power factor, battery voltage, battery current and status, load percentage, UPS status, history record, setting
*Communication*
interface	Dry contact, RS232, RS485, SNMP card slot
*Working environment*
Running Temperature	0～40℃
Relative humidity	0～95% ( without condensing)
Storage temperature	-25℃～55℃
Noise at 1	＜63dB

Input
Voltage	400 Vac
Tolerance	320 – 450V
Frequency	50Hz ± 6%

Output
Voltage	400Vac ± 1%
Power Factor	0.8
Transfer Time	0 ms
Frequency	50Hz ± 6% (On Mains)
	50Hz ± 0.5% (On Battery)
Waveform	Pure Sine Wave
THDi	Linear Load ≤ 3%; Non-linear Load ≤ 5%
Crest Factor	3 : 1 (Max)
Bypass Facility	Maintenance Bypass and Static Bypass

DC Bus / DC Functions:
DC Bus Voltage	384V
Charging Current	5 – 20A, Adjustable
Cold-Start Function	Yes
Battery Charging in OFF Mode	Yes
Battery Type	Sealed, Maintenance-free VRLA

LCD User Interface:
Metering / Indications for	Voltage
	Load %
	Frequency
	General Status
	Alarm

Communication:
Interfaces	RS232

Overload
105~125%	10 mins (Output swithes to bypass after 60s)
>130%	1 min

Environment:
Temperature	0 ~ 40^oC
Humidity	20 ~ 90% Non-condensing
Altitude	< 1000m
IP Class	20

Physical:
Dimensions (mm)	10-20kVA : 560 x 700 x 1040 (W x D x H)
	30-40kVA : 660 x 800 x 1380 (W x D x H)
	60-80kVA : 1540 x 880 x 1570 (W x D x H)
	100-200kVA : 2000 x 980 x 1800 (W x D x H)
Weight (Kg)	10kVA : 260kg
	15kVA : 350kg
	20kVA : 400kg
	30kVA : 480kg
	40kVA : 650kg
	60kVA : 650kg
	80kVA : 1200kg
	100kVA : 1330kg
	120-200kVA : On Request
