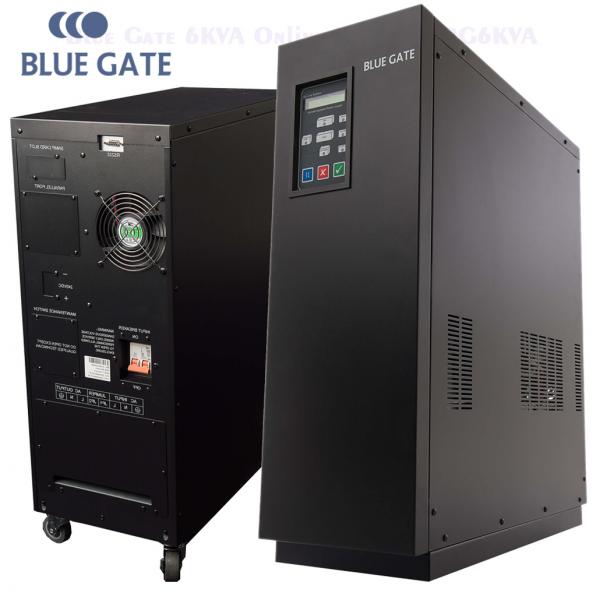

BlueGate 6.2KVA UPS Online Lfi Series

Name: BlueGate 6.2KVA UPS Online Lfi Series - Arise Energies
Price: 2500000.00 NGN
Availability: InStock

Original price was: ₦4,000,000.00.Current price is: ₦2,500,000.00.

This series of UPS is based on true on-line double conversion design, which avoids kinds of interference from Mains. The output of the UPS is stable, low-THD pure sine wave, with adjustable input/output characteristics which enhance its flexibility as well as performance.

Application
Critical servers, storage application and other networking equipment.

Features
True on-line double conversion design providing all power protection.
Sine wave pulse width modulation.
IGBT inverter design.
Wide Input voltage windows.
Pure sine wave output with less than 3% THD.
Expandable backup time.
Generator compatible.
Cold start.
Load/Battery power meter display.
Overload, on-line, battery status LED/LCD.
Advanced Battery Management.
Automatic charging in UPS off mode.
Zero transfer time on AC mode to/ from battery mode, AC mode to/ from bypass mode.
Smart RS-232 communication port.
Optional SNMP card and Dry card.
replaced_link.

Compare

Add to wishlist

Category: UPS

Description

⚡ BlueGate 6.2KVA Online UPS (LFi Series) – Consistent, Reliable, and Efficient Power Protection

The BlueGate 6.2KVA Online UPS (LFi Series) is built to deliver uninterrupted and stable power supply to critical systems and sensitive electronic equipment. Designed with true double-conversion online technology, it ensures that your devices receive clean, regulated, and continuous power — even during outages, surges, or voltage fluctuations.

At Arise Energies, we provide the BlueGate 6.2KVA UPS as a dependable solution for businesses, offices, IT setups, and industrial environments that require reliable backup power. Whether you’re running a data center or managing essential operations, this UPS keeps your equipment safe and your workflow uninterrupted.

🔋 Key Features and Specifications

Capacity: 6.2KVA / 6200VA
Technology: True Double-Conversion Online UPS (Low Frequency Intelligent Series)
Input Voltage: Wide voltage range with automatic regulation
Output: Pure sine wave output for smooth and stable performance
Transfer Time: Zero transfer time between mains and inverter operation
Display: Intelligent LCD display for real-time monitoring of power and battery status
Battery Type: Compatible with external batteries for customizable backup duration
Protection: Overload, short-circuit, surge, and battery discharge protection
Cooling System: Smart temperature-controlled fans for silent and efficient cooling
Efficiency: High energy conversion efficiency for reduced operational costs

⚙️ Why Choose the BlueGate 6.2KVA Online UPS (LFi Series)

✅ Reliable Power Supply: Protects sensitive equipment from voltage drops and surges.
✅ Continuous Performance: Ideal for servers, medical devices, and office networks.
✅ Flexible Battery Setup: Supports extended battery backup for long runtime.
✅ Durable Build: Designed for consistent performance under demanding conditions.
✅ Energy Efficient: Minimizes energy waste while maximizing output reliability.

🌍 Best Suited For:

Offices and corporate buildings
Data centers and IT infrastructure
Medical and laboratory equipment
Industrial machines and automation systems
Network and telecom devices

💡 Why Buy from Arise Energies

At Arise Energies, we specialize in delivering top-quality power and energy solutions to homes and businesses across Nigeria. We don’t just sell UPS systems — we ensure you get reliable power, expert support, and long-term performance.

Enjoy competitive pricing, nationwide delivery, and professional installation when you buy your BlueGate 6.2KVA Online UPS (LFi Series) from us.

🛒 Order Yours Today!

Power your business with confidence.
Shop the BlueGate 6.2KVA Online UPS (LFi Series) at Arise Energies and enjoy dependable backup power when you need it most.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “BlueGate 6.2KVA UPS Online Lfi Series”

Shipping & Delivery

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Rated capacity(VA)	40KAVA
Active power(W)	36KW
*INPUT*
Voltage Range	380/400/415Vac (-25%～+20%) three phase
Frequency Range	50/60Hz±5Hz auto identification
Power Factor	＞0.8(no filter) ＞0.9(with filter)
*OUTPUT*
Voltage Range	380/400/415Vac ±1%
Rated output current	60A
Frequency	Auto learning
Frequency stability(battery mode)	50/60Hz±0.05%
Wave form	Sine wave
Power Factor	0.9(lag)
Total harmonic distortion	＜3% (linear load) / ＜5%(nonlinear load)
Overload capacity	105%≤60min <110% / 110%≤10min<125%
Crest Factor	3：1 (max)
Efficiency	90%
Transfer time (Line mode, Battery mode)	0ms
*Bypass*
Rated voltage	380/400/415Vac (three phase four wire)
Voltage protection range	-40%～+20%
Rated frequency	50/60Hz
Frequency protection range	±20%
Transfer time	0ms/1ms
Overload capacity(In)	15In, 10ms 5In, 5s
*Battery*
Voltage (VDC)	384VDC
*panel*
LED	input, inverter, bypass, battery and output
LCD	input and output voltage, frequency, power factor, battery voltage, battery current and status, load percentage, UPS status, history record, setting
*Communication*
interface	Dry contact, RS232, RS485, SNMP card slot
*Working environment*
Running Temperature	0～40℃
Relative humidity	0～95% ( without condensing)
Storage temperature	-25℃～55℃
Noise at 1	＜63dB

Input
Voltage	400 Vac
Tolerance	320 – 450V
Frequency	50Hz ± 6%

Output
Voltage	400Vac ± 1%
Power Factor	0.8
Transfer Time	0 ms
Frequency	50Hz ± 6% (On Mains)
	50Hz ± 0.5% (On Battery)
Waveform	Pure Sine Wave
THDi	Linear Load ≤ 3%; Non-linear Load ≤ 5%
Crest Factor	3 : 1 (Max)
Bypass Facility	Maintenance Bypass and Static Bypass

DC Bus / DC Functions:
DC Bus Voltage	384V
Charging Current	5 – 20A, Adjustable
Cold-Start Function	Yes
Battery Charging in OFF Mode	Yes
Battery Type	Sealed, Maintenance-free VRLA

LCD User Interface:
Metering / Indications for	Voltage
	Load %
	Frequency
	General Status
	Alarm

Communication:
Interfaces	RS232

Overload
105~125%	10 mins (Output swithes to bypass after 60s)
>130%	1 min

Environment:
Temperature	0 ~ 40^oC
Humidity	20 ~ 90% Non-condensing
Altitude	< 1000m
IP Class	20

Physical:
Dimensions (mm)	10-20kVA : 560 x 700 x 1040 (W x D x H)
	30-40kVA : 660 x 800 x 1380 (W x D x H)
	60-80kVA : 1540 x 880 x 1570 (W x D x H)
	100-200kVA : 2000 x 980 x 1800 (W x D x H)
Weight (Kg)	10kVA : 260kg
	15kVA : 350kg
	20kVA : 400kg
	30kVA : 480kg
	40kVA : 650kg
	60kVA : 650kg
	80kVA : 1200kg
	100kVA : 1330kg
	120-200kVA : On Request

Input
Voltage	400 Vac
Tolerance	320 – 450V
Frequency	50Hz ± 6%

Output
Voltage	400Vac ± 1%
Power Factor	0.8
Transfer Time	0 ms
Frequency	50Hz ± 6% (On Mains)
	50Hz ± 0.5% (On Battery)
Waveform	Pure Sine Wave
THDi	Linear Load ≤ 3%; Non-linear Load ≤ 5%
Crest Factor	3 : 1 (Max)
Bypass Facility	Maintenance Bypass and Static Bypass

DC Bus / DC Functions:
DC Bus Voltage	384V
Charging Current	5 – 20A, Adjustable
Cold-Start Function	Yes
Battery Charging in OFF Mode	Yes
Battery Type	Sealed, Maintenance-free VRLA

LCD User Interface:
Metering / Indications for	Voltage
	Load %
	Frequency
	General Status
	Alarm

Communication:
Interfaces	RS232

Overload
105~125%	10 mins (Output swithes to bypass after 60s)
>130%	1 min

Environment:
Temperature	0 ~ 40^oC
Humidity	20 ~ 90% Non-condensing
Altitude	< 1000m
IP Class	20

Physical:
Dimensions (mm)	10-20kVA : 560 x 700 x 1040 (W x D x H)
	30-40kVA : 660 x 800 x 1380 (W x D x H)
	60-80kVA : 1540 x 880 x 1570 (W x D x H)
	100-200kVA : 2000 x 980 x 1800 (W x D x H)
Weight (Kg)	10kVA : 260kg
	15kVA : 350kg
	20kVA : 400kg
	30kVA : 480kg
	40kVA : 650kg
	60kVA : 650kg
	80kVA : 1200kg
	100kVA : 1330kg
	120-200kVA : On Request

Input
Voltage	230 Vac
Tolerance	Normal Over-voltage: 10%
	Withstand Over-voltage: 15% (20% max limit)
	Normal Under-voltage: – 20%
	Withstand Low-voltage: – 30% (-37% lowest limit)
Power Factor	0.98

Output
Voltage	230Vac ± 1%
Power Factor	0.8
	0.9
Transfer Time	0 ms
Frequency	46 – 54Hz (On Mains)
	50Hz (On Battery)
Waveform	Pure Sine Wave
THDi	Linear Load ≤ 3%; Non-linear Load ≤ 6%
Crest Factor	3 : 1
Bypass Facility	FS Model: Static Bypass
	FS-V Model: Both Maintenance Bypass and Static Bypass

DC Bus / DC Functions:
1kVA	36V
2kVA	72/96V
3kVA	96V
6/10kVA	192V / 240V
Cold-Start Function	Yes
Charging Time	6hr to recover to 90% capacity
Battery Charging in OFF Mode	Yes
Battery Type	Sealed, Maintenance-free VRLA

LCD User Interface:
Metering / Indications for	Voltage
	Load %
	Frequency
	General Status
	Alarm

Communication:
Interfaces	RS232, USB, SNMP (* Option)

Overload
100~110%	Output swithes to bypass after 60s
125~130%	Output swithes to bypass after 30s
>130%	Output swithes to bypass after 100ms

Environment:
Temperature	0 ~ 40^oC
Humidity	20 ~ 90% Non-condensing
Noise Level	< 50dB from 1m
IP Class	20

Physical:
Dimensions (mm)	1kVA : 145 x 405 x 220 (W x D x H)
	2-3kVA : 192 x 460 x 340 (W x D x H)
	6-10kVA : 248 x 500 x 460 (W x D x H)
Weight (Kg)	1kVA : 14kg
	2kVA : 34kg
	3kVA : 34.5kg
	6kVA : 57kg / 192V: 90kg / 240V
	10kVA : 60kg / 192V; 93kg / 240V


Rated capacity(VA)	20KVA
Active power(W)	18KW
*INPUT*
Voltage Range	380/400/415Vac (-25%～+20%) three phase
Frequency Range	50/60Hz±5Hz auto identification
Power Factor	＞0.8(no filter) ＞0.9(with filter)
*OUTPUT*
Voltage Range	380/400/415Vac ±1%
Rated output current	30A
Frequency	Auto learning
Frequency stability(battery mode)	50/60Hz±0.05%
Wave form	Sine wave
Power Factor	0.9(lag)
Total harmonic distortion	＜3% (linear load) / ＜5%(nonlinear load)
Overload capacity	105%≤60min <110% / 110%≤10min<125%
Crest Factor	3：1 (max)
Efficiency	89%
Transfer time (Line mode, Battery mode)	0ms
*Bypass*
Rated voltage	380/400/415Vac (three phase four wire)
Voltage protection range	-40%～+20%
Rated frequency	50/60Hz
Frequency protection range	±20%
Transfer time	0ms/1ms
Overload capacity(In)	15In, 10ms 5In, 5s
*Battery*
Voltage (VDC)	384VDC
*panel*
LED	input, inverter, bypass, battery and output
LCD	input and output voltage, frequency, power factor, battery voltage, battery current and status, load percentage, UPS status, history record, setting
*Communication*
interface	Dry contact, RS232, RS485, SNMP card slot
*Working environment*
Running Temperature	0～40℃
Relative humidity	0～95% ( without condensing)
Storage temperature	-25℃～55℃
Noise at 1	＜63dB
